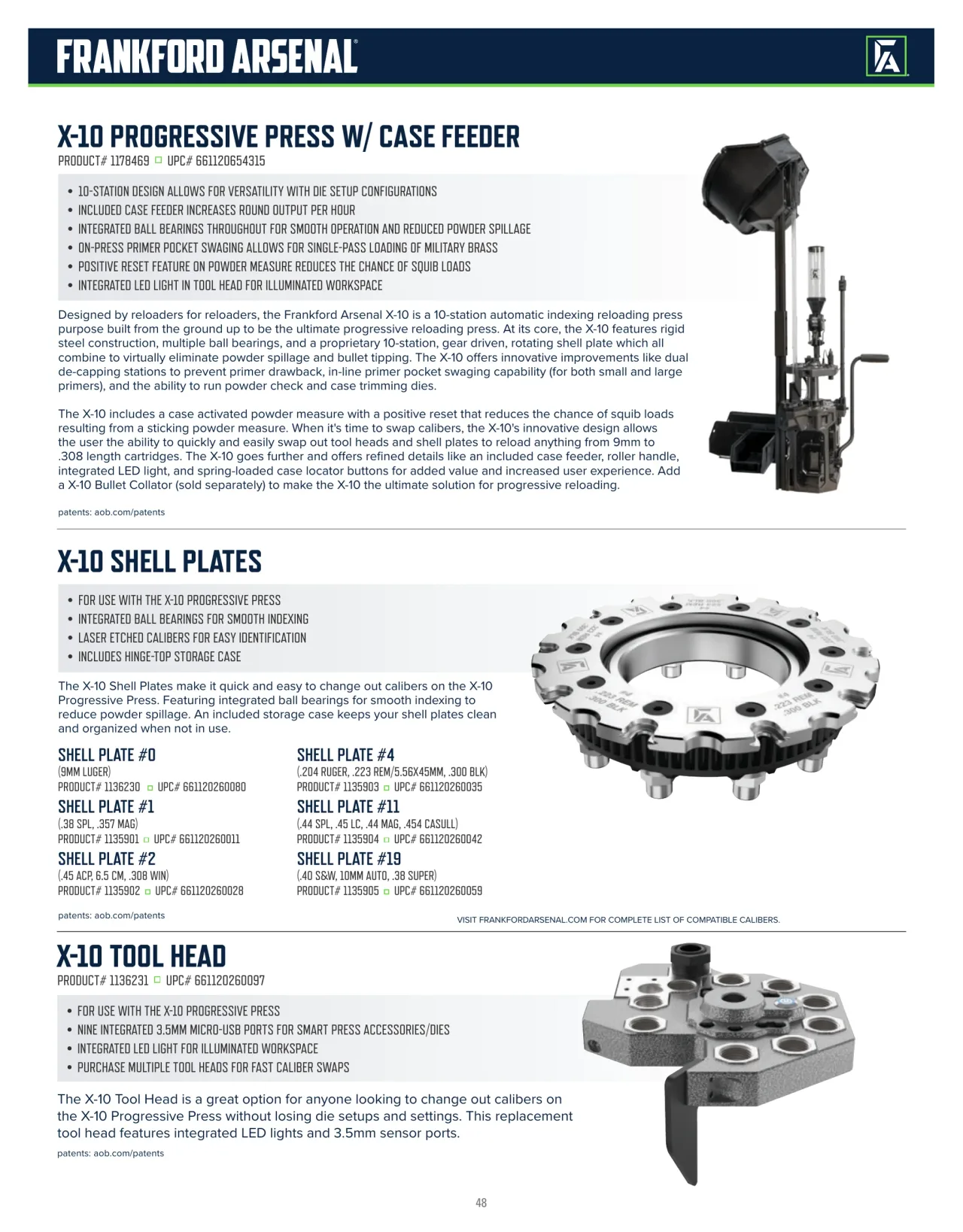

American Outdoor Brands · Accesorios de tiro 2023 · página 48 de 192

X-10 PROGRESSIVE PRESS W/ CASE FEEDER PRODUCT# 1178469 UPC# 661120654315 • 10-STATION DESIGN ALLOWS FOR VERSATILITY WITH DIE SETUP CONFIGURATIONS • INCLUDED CASE FEEDER INCREASES ROUND OUTPUT PER HOUR • INTEGRATED BALL BEARINGS THROUGHOUT FOR SMOOTH OPERATION AND REDUCED POWDER SPILLAGE • ON-PRESS PRIMER POCKET SWAGING ALLOWS FOR SINGLE-PASS LOADING OF MILITARY BRASS • POSITIVE RESET FEATURE ON POWDER MEASURE REDUCES THE CHANCE OF SQUIB LOADS • INTEGRATED LED LIGHT IN TOOL HEAD FOR ILLUMINATED WORKSPACE Designed by reloaders for reloaders, the Frankford Arsenal X-10 is a 10-station automatic indexing reloading press purpose built from the ground up to be the ultimate progressive reloading press. At its core, the X-10 features rigid steel construction, multiple ball bearings, and a proprietary 10-station, gear driven, rotating shell plate which all combine to virtually eliminate powder spillage and bullet tipping. The X-10 offers innovative improvements like dual de-capping stations to prevent primer drawback, in-line primer pocket swaging capability (for both small and large primers), and the ability to run powder check and case trimming dies. The X-10 includes a case activated powder measure with a positive reset that reduces the chance of squib loads resulting from a sticking powder measure. When it's time to swap calibers, the X-10's innovative design allows the user the ability to quickly and easily swap out tool heads and shell plates to reload anything from 9mm to .308 length cartridges. The X-10 goes further and offers refined details like an included case feeder, roller handle, integrated LED light, and spring-loaded case locator buttons for added value and increased user experience. Add a X-10 Bullet Collator (sold separately) to make the X-10 the ultimate solution for progressive reloading. patents: aob.com/patents X-10 SHELL PLATES • FOR USE WITH THE X-10 PROGRESSIVE PRESS • INTEGRATED BALL BEARINGS FOR SMOOTH INDEXING • LASER ETCHED CALIBERS FOR EASY IDENTIFICATION • INCLUDES HINGE-TOP STORAGE CASE The X-10 Shell Plates make it quick and easy to change out calibers on the X-10 Progressive Press. Featuring integrated ball bearings for smooth indexing to reduce powder spillage. An included storage case keeps your shell plates clean and organized when not in use. SHELL PLATE #0 SHELL PLATE #4 (9MM LUGER) (.204 RUGER, .223 REM/5.56X45MM, .300 BLK) PRODUCT# 1136230 UPC# 661120260080 PRODUCT# 1135903 UPC# 661120260035 SHELL PLATE #1 SHELL PLATE #11 (.38 SPL, .357 MAG) (.44 SPL, .45 LC, .44 MAG, .454 CASULL) PRODUCT# 1135901 UPC# 661120260011 PRODUCT# 1135904 UPC# 661120260042 SHELL PLATE #2 SHELL PLATE #19 (.45 ACP, 6.5 CM, .308 WIN) (.40 S&W, 10MM AUTO, .38 SUPER) PRODUCT# 1135902 UPC# 661120260028 PRODUCT# 1135905 UPC# 661120260059 patents: aob.com/patents VISIT FRANKFORDARSENAL.COM FOR COMPLETE LIST OF COMPATIBLE CALIBERS. X-10 TOOL HEAD PRODUCT# 1136231 UPC# 661120260097 • FOR USE WITH THE X-10 PROGRESSIVE PRESS • NINE INTEGRATED 3.5MM MICRO-USB PORTS FOR SMART PRESS ACCESSORIES/DIES • INTEGRATED LED LIGHT FOR ILLUMINATED WORKSPACE • PURCHASE MULTIPLE TOOL HEADS FOR FAST CALIBER SWAPS The X-10 Tool Head is a great option for anyone looking to change out calibers on the X-10 Progressive Press without losing die setups and settings. This replacement tool head features integrated LED lights and 3.5mm sensor ports. patents: aob.com/patents 48
