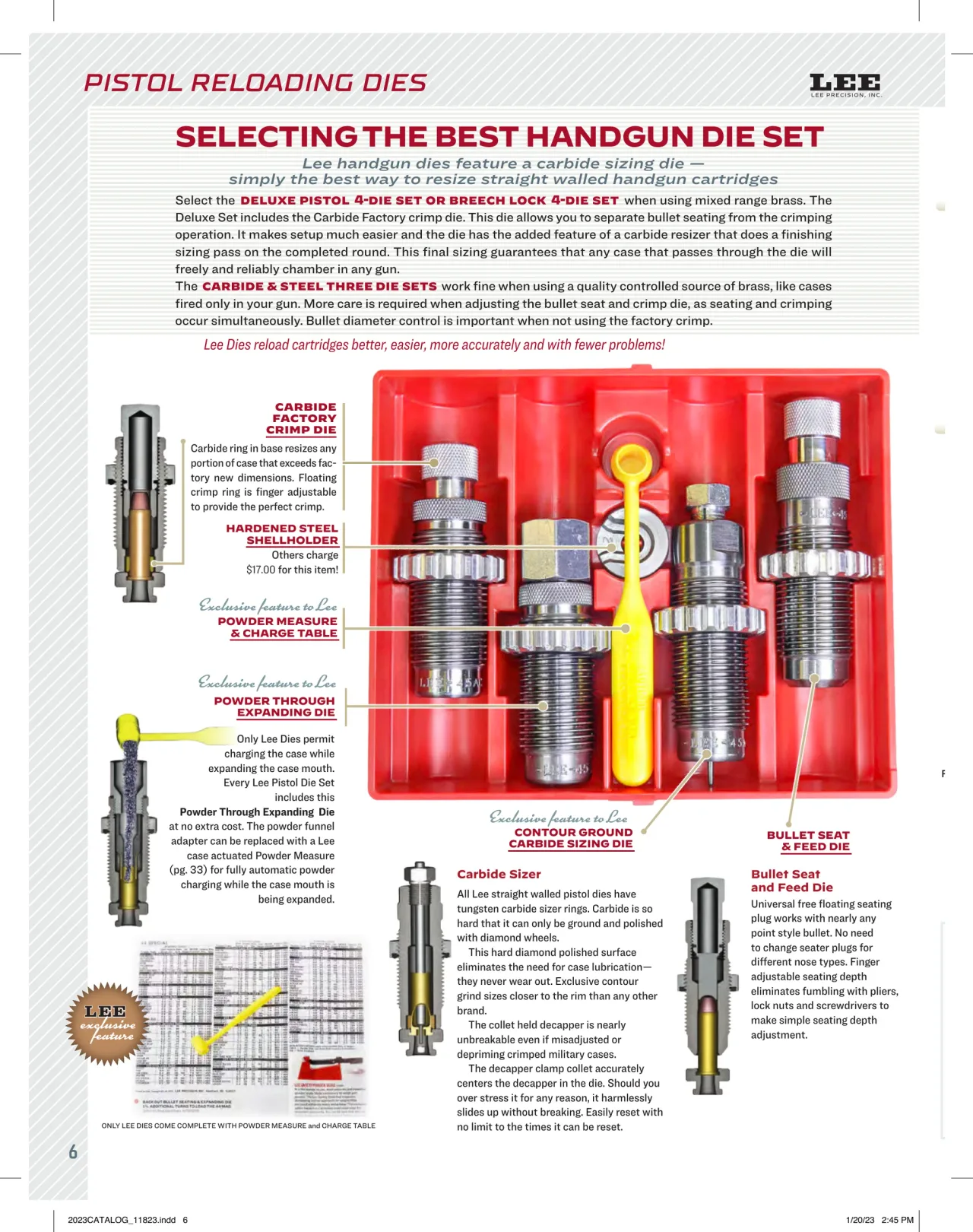

PISTOL RELOADING DIES LEE PRECISION, INC. SELECTING THE BEST HANDGUN DIE SET Lee handgun dies feature a carbide sizing die — simply the best way to resize straight walled handgun cartridges Select the Deluxe Pistol 4-die set or breech lock 4-Die set when using mixed range brass. The Deluxe Set includes the Carbide Factory crimp die. This die allows you to separate bullet seating from the crimping operation. It makes setup much easier and the die has the added feature of a carbide resizer that does a finishing sizing pass on the completed round. This final sizing guarantees that any case that passes through the die will freely and reliably chamber in any gun. The carbide & steEl three die sets work fine when using a quality controlled source of brass, like cases fired only in your gun. More care is required when adjusting the bullet seat and crimp die, as seating and crimping occur simultaneously. Bullet diameter control is important when not using the factory crimp. Lee Dies reload cartridges better, easier, more accurately and with fewer problems! CARBIDE FACTORY CRIMP DIE carbide factory crimp die Carbide ring in base resizes any portion of case that exceeds fac- tory new dimensions. Floating crimp ring is finger adjustable to provide the perfect crimp. HARDENED STEEL SHELLHOLDER Others charge $17.00 for this item! Exclusive feature to Lee POWDER MEASURE & CHARGE TABLE Exclusive feature to Lee POWDER THROUGH EXPANDING DIE Only Lee Dies permit charging the case while expanding the case mouth. fitte Every Lee Pistol Die Set includes this Powder Through Expanding Die at no extra cost. The powder funnel Exclusive feature to Lee CONTOUR GROUND BULLET SEAT adapter can be replaced with a Lee CARBIDE SIZING DIE & FEED DIE case actuated Powder Measure (pg. 33) for fully automatic powder Carbide Sizer Bullet Seat charging while the case mouth is and Feed Die being expanded. All Lee straight walled pistol dies have tungsten carbide sizer rings. Carbide is so Universal free floating seating hard that it can only be ground and polished plug works with nearly any with diamond wheels. point style bullet. No need This hard diamond polished surface to change seater plugs for eliminates the need for case lubrication— different nose types. Finger they never wear out. Exclusive contour adjustable seating depth grind sizes closer to the rim than any other eliminates fumbling with pliers, lock nuts and screwdrivers to LEE brand. make simple seating depth exclusive The collet held decapper is nearly feature unbreakable even if misadjusted or adjustment. depriming crimped military cases. The decapper clamp collet accurately centers the decapper in the die. Should you over stress it for any reason, it harmlessly slides up without breaking. Easily reset with ONLY LEE DIES COME COMPLETE WITH POWDER MEASURE and CHARGE TABLE no limit to the times it can be reset. 6 2023CATALOG_11823.indd 6 PISTOL R 1/20/23 2:45 PM
