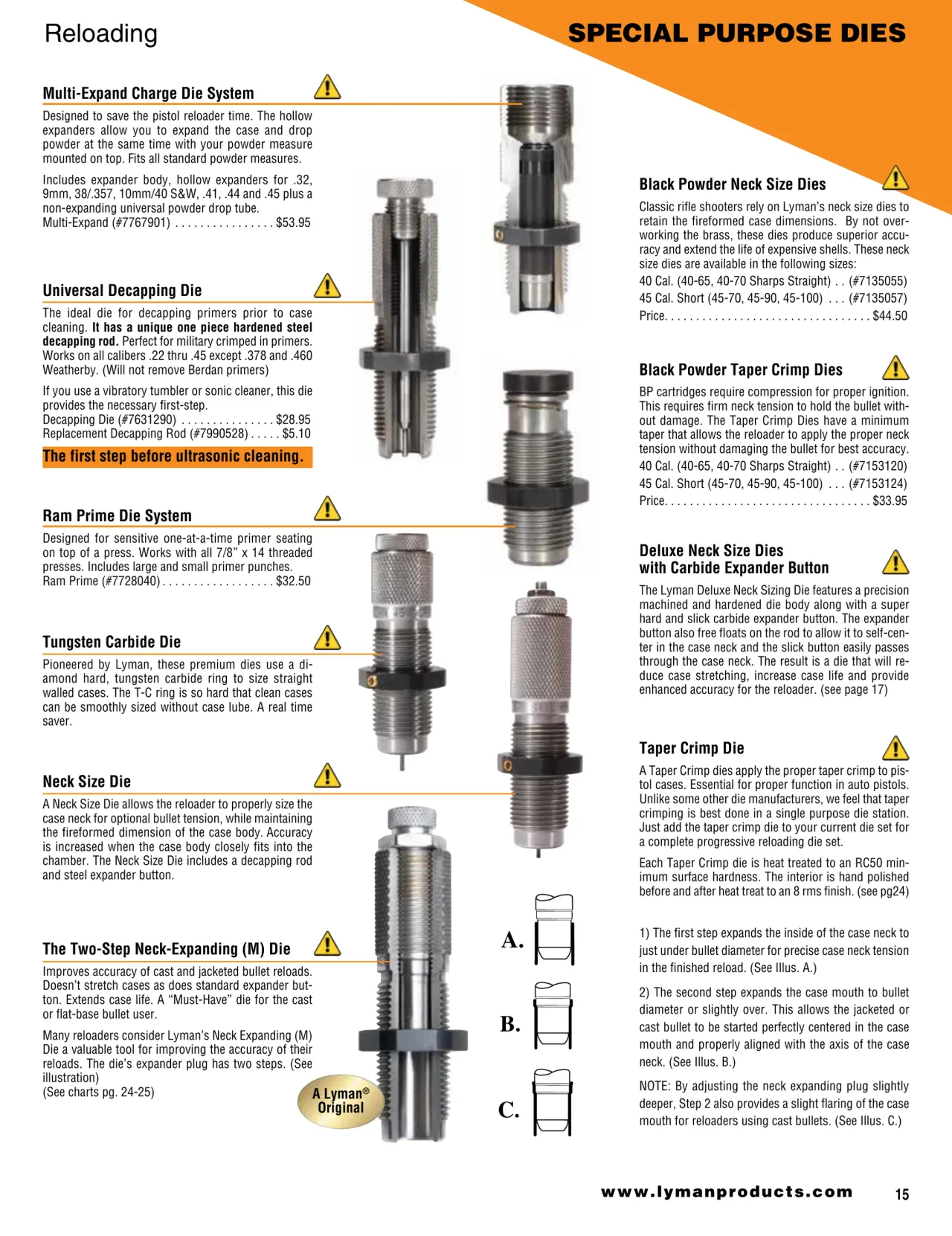

Reloading SPECIAL PURPOSE DIES Multi-Expand Charge Die System Designed to save the pistol reloader time . The hollow expanders allow you to expand the case and drop powder at the same time with your powder measure mounted on top . Fits all standard powder measures . Includes expander body, hollow expanders for .32, Black Powder Neck Size Dies 9mm, 38/ .357, 10mm/40 S&W, .41, .44 and .45 plus a non-expanding universal powder drop tube . Classic rifle shooters rely on Lyman’s neck size dies to Multi-Expand (#7767901) . . . . . . . . . . . . . . . . $53 .95 retain the fireformed case dimensions . By not over- working the brass, these dies produce superior accu- racy and extend the life of expensive shells . These neck size dies are available in the following sizes: 40 Cal . (40-65, 40-70 Sharps Straight) . . (#7135055) Universal Decapping Die 45 Cal . Short (45-70, 45-90, 45-100) . . . (#7135057) The ideal die for decapping primers prior to case Price . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $44 .50 cleaning . It has a unique one piece hardened steel decapping rod. Perfect for military crimped in primers . Works on all calibers .22 thru .45 except .378 and .460 Weatherby . (Will not remove Berdan primers) Black Powder Taper Crimp Dies If you use a vibratory tumbler or sonic cleaner, this die BP cartridges require compression for proper ignition . provides the necessary first-step . This requires firm neck tension to hold the bullet with- Decapping Die (#7631290) . . . . . . . . . . . . . . . $28 .95 out damage . The Taper Crimp Dies have a minimum Replacement Decapping Rod (#7990528) . . . . . $5 .10 taper that allows the reloader to apply the proper neck tension without damaging the bullet for best accuracy . The first step before ultrasonic cleaning. 40 Cal . (40-65, 40-70 Sharps Straight) . . (#7153120) 45 Cal . Short (45-70, 45-90, 45-100) . . . (#7153124) Price . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $33 .95 Ram Prime Die System Designed for sensitive one-at-a-time primer seating on top of a press . Works with all 7/8” x 14 threaded Deluxe Neck Size Dies presses . Includes large and small primer punches . with Carbide Expander Button Ram Prime (#7728040) . . . . . . . . . . . . . . . . . . $32 .50 The Lyman Deluxe Neck Sizing Die features a precision machined and hardened die body along with a super hard and slick carbide expander button . The expander button also free floats on the rod to allow it to self-cen- Tungsten Carbide Die ter in the case neck and the slick button easily passes Pioneered by Lyman, these premium dies use a di- through the case neck . The result is a die that will re- amond hard, tungsten carbide ring to size straight duce case stretching, increase case life and provide walled cases . The T-C ring is so hard that clean cases enhanced accuracy for the reloader . (see page 17) can be smoothly sized without case lube . A real time saver . Taper Crimp Die A Taper Crimp dies apply the proper taper crimp to pis- Neck Size Die tol cases . Essential for proper function in auto pistols . A Neck Size Die allows the reloader to properly size the Unlike some other die manufacturers, we feel that taper case neck for optional bullet tension, while maintaining crimping is best done in a single purpose die station . the fireformed dimension of the case body . Accuracy Just add the taper crimp die to your current die set for is increased when the case body closely fits into the a complete progressive reloading die set . chamber . The Neck Size Die includes a decapping rod Each Taper Crimp die is heat treated to an RC50 min- and steel expander button . imum surface hardness . The interior is hand polished before and after heat treat to an 8 rms finish . (see pg24) 1) The first step expands the inside of the case neck to The Two-Step Neck-Expanding (M) Die just under bullet diameter for precise case neck tension Improves accuracy of cast and jacketed bullet reloads . in the finished reload . (See Illus . A .) Doesn’t stretch cases as does standard expander but- 2) The second step expands the case mouth to bullet ton . Extends case life . A “Must-Have” die for the cast or flat-base bullet user . diameter or slightly over . This allows the jacketed or cast bullet to be started perfectly centered in the case Many reloaders consider Lyman’s Neck Expanding (M) Die a valuable tool for improving the accuracy of their mouth and properly aligned with the axis of the case reloads . The die’s expander plug has two steps . (See neck . (See Illus . B .) illustration) (See charts pg . 24-25) NOTE: By adjusting the neck expanding plug slightly A Lyman® Original deeper, Step 2 also provides a slight flaring of the case mouth for reloaders using cast bullets . (See Illus . C .) www.lymanproducts.com 15
