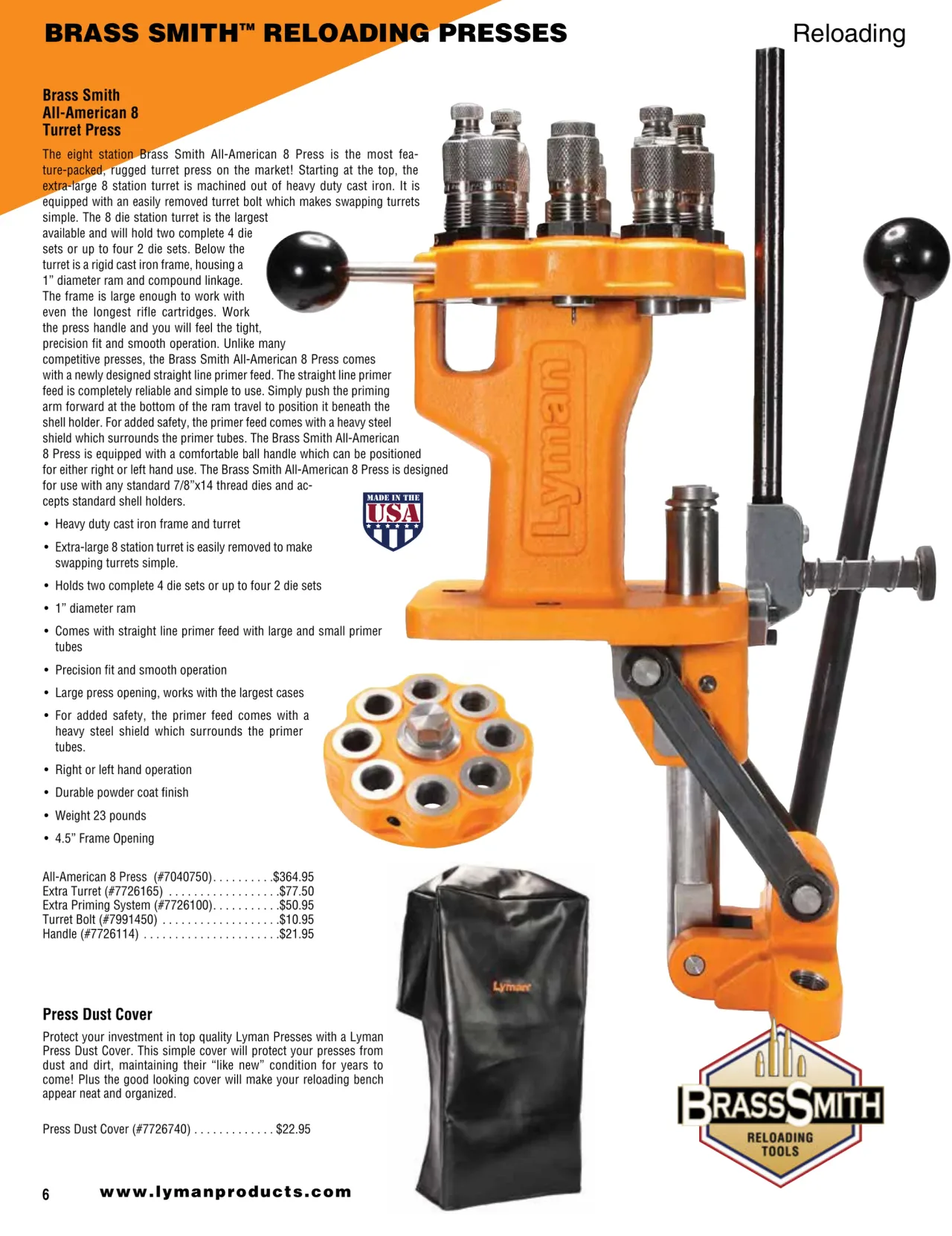

BRASS SMITH RELOADING PRESSES TM Reloading Brass Smith All-American 8 Turret Press The eight station Brass Smith All-American 8 Press is the most fea- ture-packed, rugged turret press on the market! Starting at the top, the extra-large 8 station turret is machined out of heavy duty cast iron . It is equipped with an easily removed turret bolt which makes swapping turrets simple . The 8 die station turret is the largest available and will hold two complete 4 die sets or up to four 2 die sets . Below the turret is a rigid cast iron frame, housing a 1” diameter ram and compound linkage . The frame is large enough to work with even the longest rifle cartridges . Work the press handle and you will feel the tight, precision fit and smooth operation . Unlike many competitive presses, the Brass Smith All-American 8 Press comes with a newly designed straight line primer feed . The straight line primer feed is completely reliable and simple to use . Simply push the priming arm forward at the bottom of the ram travel to position it beneath the shell holder . For added safety, the primer feed comes with a heavy steel shield which surrounds the primer tubes . The Brass Smith All-American 8 Press is equipped with a comfortable ball handle which can be positioned for either right or left hand use . The Brass Smith All-American 8 Press is designed for use with any standard 7/8”x14 thread dies and ac- MADE IN THE cepts standard shell holders . • Heavy duty cast iron frame and turret • Extra-large 8 station turret is easily removed to make swapping turrets simple . • Holds two complete 4 die sets or up to four 2 die sets • 1” diameter ram • Comes with straight line primer feed with large and small primer tubes • Precision fit and smooth operation • Large press opening, works with the largest cases • For added safety, the primer feed comes with a heavy steel shield which surrounds the primer tubes . • Right or left hand operation • Durable powder coat finish • Weight 23 pounds • 4 .5” Frame Opening All-American 8 Press (#7040750) . . . . . . . . . .$364 .95 Extra Turret (#7726165) . . . . . . . . . . . . . . . . . .$77 .50 Extra Priming System (#7726100) . . . . . . . . . . .$50 .95 Turret Bolt (#7991450) . . . . . . . . . . . . . . . . . . .$10 .95 Handle (#7726114) . . . . . . . . . . . . . . . . . . . . . .$21 .95 Press Dust Cover Protect your investment in top quality Lyman Presses with a Lyman Press Dust Cover . This simple cover will protect your presses from dust and dirt, maintaining their “like new” condition for years to come! Plus the good looking cover will make your reloading bench appear neat and organized . Press Dust Cover (#7726740) . . . . . . . . . . . . . $22 .95 6 www.lymanproducts.com
