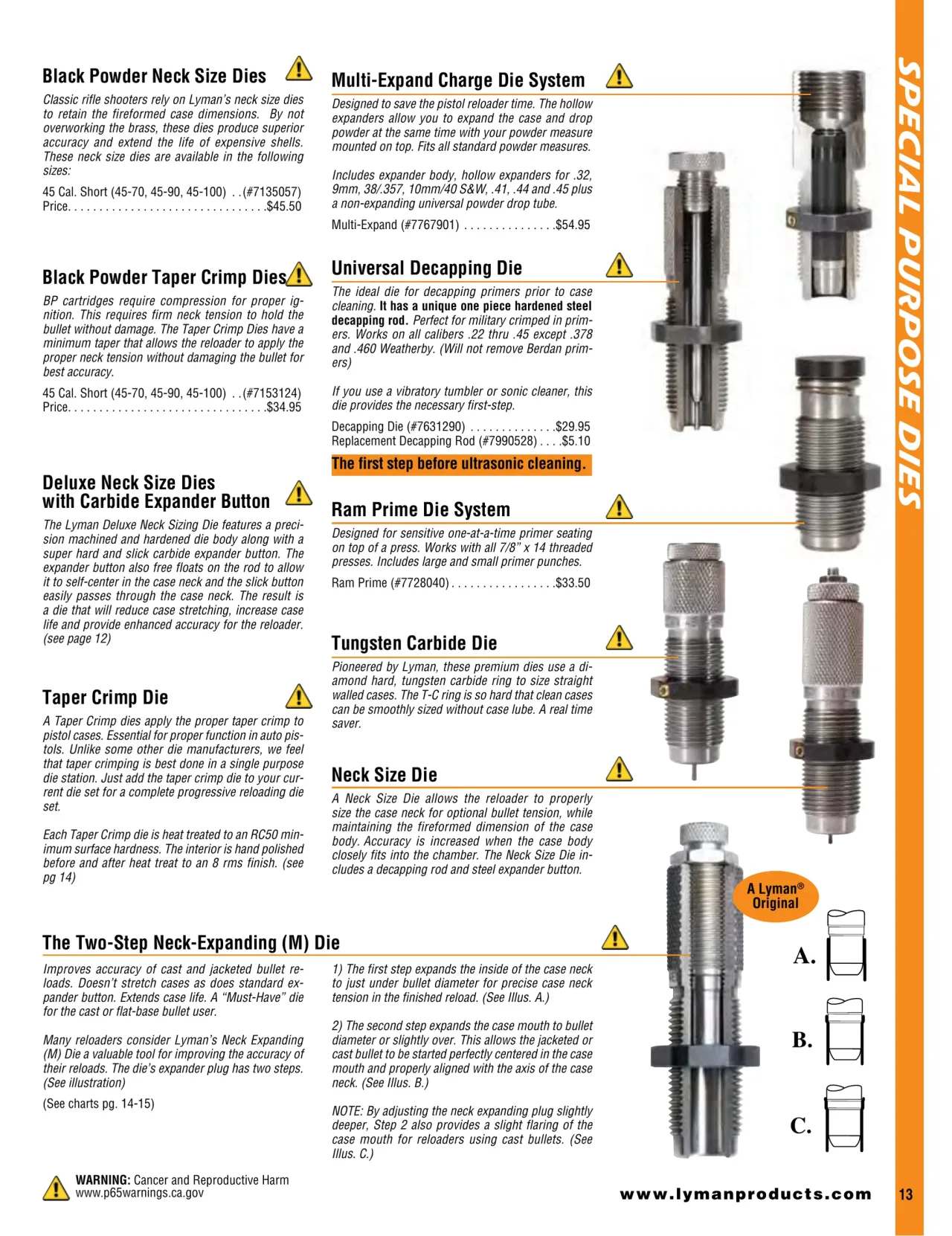

SPECIAL PURPOSE DIES Black Powder Neck Size Dies Multi-Expand Charge Die System Classic rifle shooters rely on Lyman’s neck size dies Designed to save the pistol reloader time. The hollow to retain the fireformed case dimensions. By not expanders allow you to expand the case and drop overworking the brass, these dies produce superior powder at the same time with your powder measure accuracy and extend the life of expensive shells. mounted on top. Fits all standard powder measures. These neck size dies are available in the following sizes: Includes expander body, hollow expanders for .32, 45 Cal. Short (45-70, 45-90, 45-100) . . (#7135057) 9mm, 38/.357, 10mm/40 S&W, .41, .44 and .45 plus Price. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $45.50 a non-expanding universal powder drop tube. Multi-Expand (#7767901) . . . . . . . . . . . . . . . $54.95 Black Powder Taper Crimp Dies Universal Decapping Die The ideal die for decapping primers prior to case BP cartridges require compression for proper ig- cleaning. It has a unique one piece hardened steel nition. This requires firm neck tension to hold the decapping rod. Perfect for military crimped in prim- bullet without damage. The Taper Crimp Dies have a ers. Works on all calibers .22 thru .45 except .378 minimum taper that allows the reloader to apply the and .460 Weatherby. (Will not remove Berdan prim- proper neck tension without damaging the bullet for ers) best accuracy. 45 Cal. Short (45-70, 45-90, 45-100) . . (#7153124) If you use a vibratory tumbler or sonic cleaner, this Price. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $34.95 die provides the necessary first-step. Decapping Die (#7631290) . . . . . . . . . . . . . . $29.95 Replacement Decapping Rod (#7990528). . . . $5.10 The first step before ultrasonic cleaning. Deluxe Neck Size Dies with Carbide Expander Button Ram Prime Die System The Lyman Deluxe Neck Sizing Die features a preci- sion machined and hardened die body along with a Designed for sensitive one-at-a-time primer seating super hard and slick carbide expander button. The on top of a press. Works with all 7/8” x 14 threaded expander button also free floats on the rod to allow presses. Includes large and small primer punches. it to self-center in the case neck and the slick button Ram Prime (#7728040). . . . . . . . . . . . . . . . . $33.50 easily passes through the case neck. The result is a die that will reduce case stretching, increase case life and provide enhanced accuracy for the reloader. (see page 12) Tungsten Carbide Die Pioneered by Lyman, these premium dies use a di- amond hard, tungsten carbide ring to size straight Taper Crimp Die walled cases. The T-C ring is so hard that clean cases can be smoothly sized without case lube. A real time A Taper Crimp dies apply the proper taper crimp to saver. pistol cases. Essential for proper function in auto pis- tols. Unlike some other die manufacturers, we feel that taper crimping is best done in a single purpose die station. Just add the taper crimp die to your cur- Neck Size Die rent die set for a complete progressive reloading die A Neck Size Die allows the reloader to properly set. size the case neck for optional bullet tension, while maintaining the fireformed dimension of the case Each Taper Crimp die is heat treated to an RC50 min- body. Accuracy is increased when the case body imum surface hardness. The interior is hand polished closely fits into the chamber. The Neck Size Die in- before and after heat treat to an 8 rms finish. (see cludes a decapping rod and steel expander button. pg 14) A Lyman® Original The Two-Step Neck-Expanding (M) Die Improves accuracy of cast and jacketed bullet re- 1) The first step expands the inside of the case neck loads. Doesn’t stretch cases as does standard ex- to just under bullet diameter for precise case neck pander button. Extends case life. A “Must-Have” die tension in the finished reload. (See Illus. A.) for the cast or flat-base bullet user. 2) The second step expands the case mouth to bullet Many reloaders consider Lyman’s Neck Expanding diameter or slightly over. This allows the jacketed or (M) Die a valuable tool for improving the accuracy of cast bullet to be started perfectly centered in the case their reloads. The die’s expander plug has two steps. mouth and properly aligned with the axis of the case (See illustration) neck. (See Illus. B.) (See charts pg. 14-15) NOTE: By adjusting the neck expanding plug slightly deeper, Step 2 also provides a slight flaring of the case mouth for reloaders using cast bullets. (See Illus. C.) WARNING: Cancer and Reproductive Harm www.p65warnings.ca.gov www.lymanproducts.com 13
